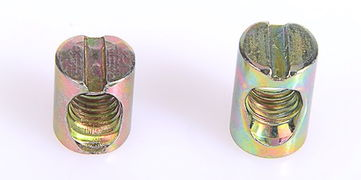

Automatically drilling and tapping machine for barrel nut M8
Automatically drilling and tapping machine for barrel nut M8
|
Main attack module |
NOTE |
|
PLC |
JUNCHUANG 40 POINT PLC |
|
TOUCH SCREEN |
7 INCH touch screen |
|
Feeding system |
Vibrator |
|
AC contactor |
Schneider |
|
intermediate relay |
Schneider |
|
Drilling power head (2 units) |
4 single servo drilling machines, with a spindle equipped with a 1.1KW ordinary motor and a feed axis equipped with a 0.75KW servo motor (drilling capacity 1-7mm) |
|
Dual servo tapping head (1 unit) |
dual servo tapping machine, spindle equipped with 1.8KW ordinary motor display control, feed axis equipped with 0.75KW servo motor display control (tapping capacity M2-M8) |
|
Dividing disk system |
750W servo motor indexing system for display and control |
|
Pneumatic system kit |
Clamp the workpiece |
|
Clamp |
Customize as drawing product |
|
Other |
Rack, program, circuit |
|
Weight |
Around 850KG |
|
Size |
1450mmX1250mmX1650mm |
|
Voltage |
380V+neutral wire (three-phase four wire system) |
|
Main features of fully automatic tooth tapping machine |
|
|
Machine advantages |
1. Adopting PLC control, using a full Chinese color touch screen to achieve human-machine dialogue, equipped with blind hole detection, tap detection, no material detection, counting tapping energy, torque protection, can tap left or right teeth, and can also drill holes. Parameter setting is convenient and fast, with a foolproof operation, automatic alarm shutdown and Chinese prompt in case of faults. 2. This equipment is designed specifically for your company's products, with good stability, low investment, high efficiency, high precision of processed products, large quantity, and short cost recovery cycle 4. All actions are controlled by software, and device parameters are flexibly set to facilitate functional adjustments and technical upgrades, never falling behind, 5. This device is not prone to damaging the tap. In the event of a malfunction, the equipment will automatically sound an alarm and shut down, with error reports in Chinese or English. There will be no occurrence of tooth decay or damage, and the production of defective products will be limited. The fault self diagnosis function is available, and the fault display is clear at a glance. 6. The transmission system is precise and simple, with more stable operation, easier maintenance, extremely low failure rate, and low equipment power consumption. 7. It is convenient to replace the fixture and can be used for multiple similar products to share this equipment. 8. The entire equipment is fully automated, and one person can operate multiple devices simultaneously. |
