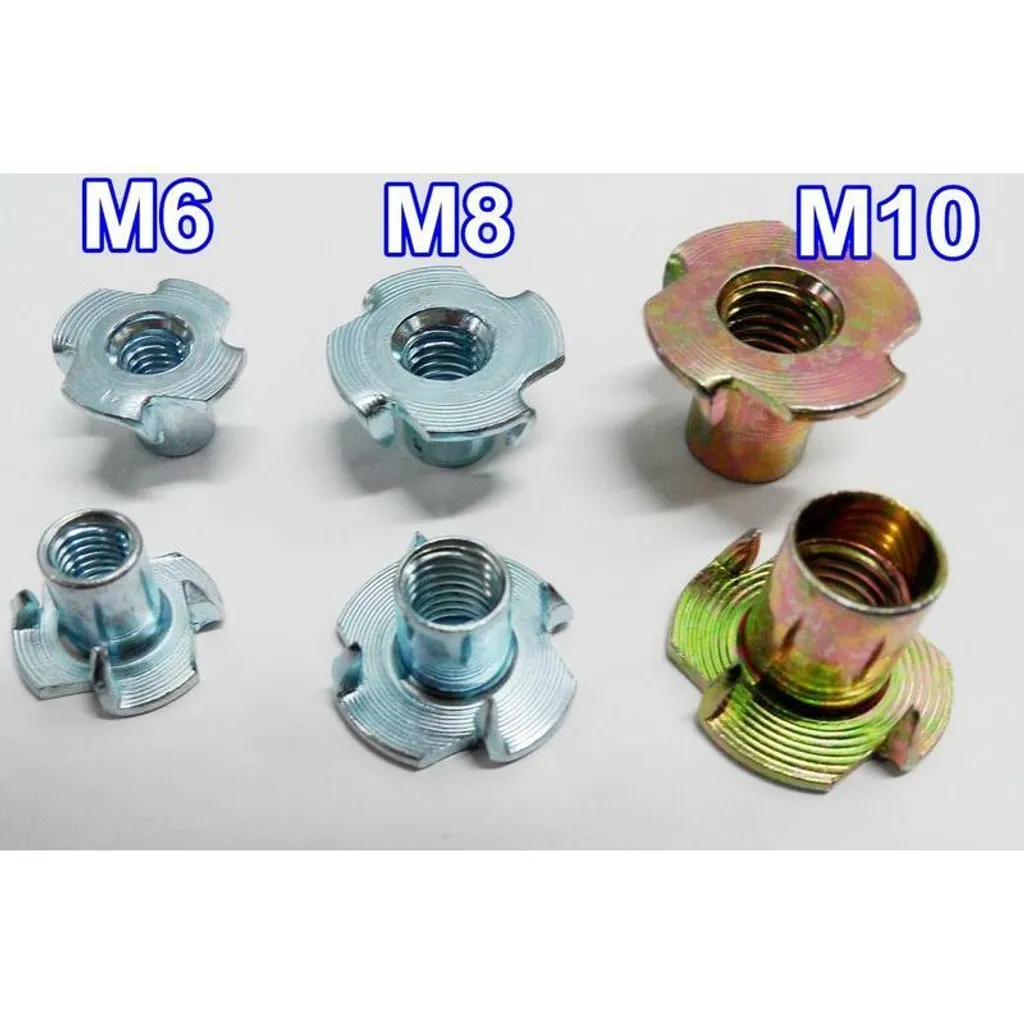

Four Claw Nuts tapping machine automatically TP-8 Stainless Steel T Nut M6 M8 M10

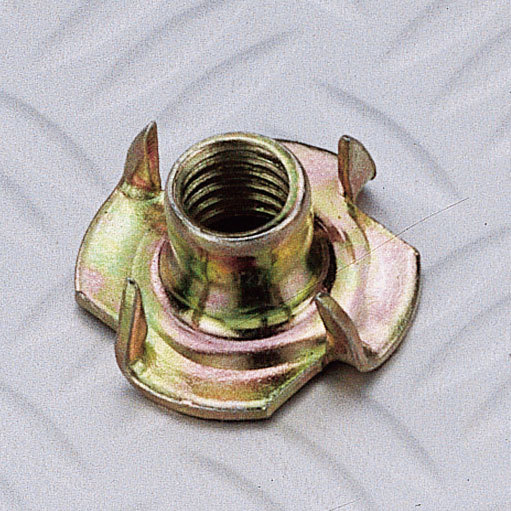

Four-claw tee nuts, also known as four-prong tee nuts, are fasteners commonly used to provide a threaded socket in wood, particle board, and other composite materials. These nuts are typically made of metal such as steel or brass and have a cylindrical shape with internal threads and a flange at one end. The flange has four protruding prongs or claws that help secure the nut into the material.
Four Claw Nuts tapping machine automatically TP-8 Stainless Steel T Nut M6 M8 M10
Description
1. The equipment is equipped as standard: automatic shutdown without material, automatic shutdown alarm function when the tap is broken.
2. Adopt PLC control, use color touch screen to realize man-machine dialogue, convenient and fast parameter setting, convenient operation, automatic alarm and shutdown in case of failure.
3. Good stability, low investment, high efficiency, high precision, large quantity and short cost recovery period. 4. All actions are controlled by software, and the equipment parameters can be set flexibly, which is convenient for function adjustment and technical upgrade.
5. The transmission system is precise and concise, the work is more stable, and the maintenance is more convenient. The failure rate is extremely low and the power consumption of the equipment is low.
6. It is convenient to replace the fixture and can be used for a variety of similar products to share this equipment.
7. The whole equipment is fully automated, and one person can operate SOME MACHINES at the same time.
Machine details
| Main attack modules |
note |
|
PLC |
TAIWAN YONGHONG 32.PLC |
| Touch screen |
TAIWAN YONGHONG 7-inch touch screen |
| Feeding system | Stainless steel vibration plate |
| AC contactor | Schneider |
| Intermediate relay | Schneider |
| Tapping power |
Servo tapping machine, the spindle is equipped with Shanghai Newstar 3.8Kw servo motor, The feed axis is equipped with a new 0.75KW servo motor (POWER MODEL OPTIONS) |
| Indexing disk system | Pneumatic indexing |
| Non-standard fixture/clamb |
Customized |
|
Others |
Rack, program, circuit |
|
Machine weight |
Around 750KG (POWER MODEL OPTIONS) |
|
Size |
1250mmX1250mmX1800mm |
|
Voltage |
380V+Zero line (three-phase four-wire system) |
