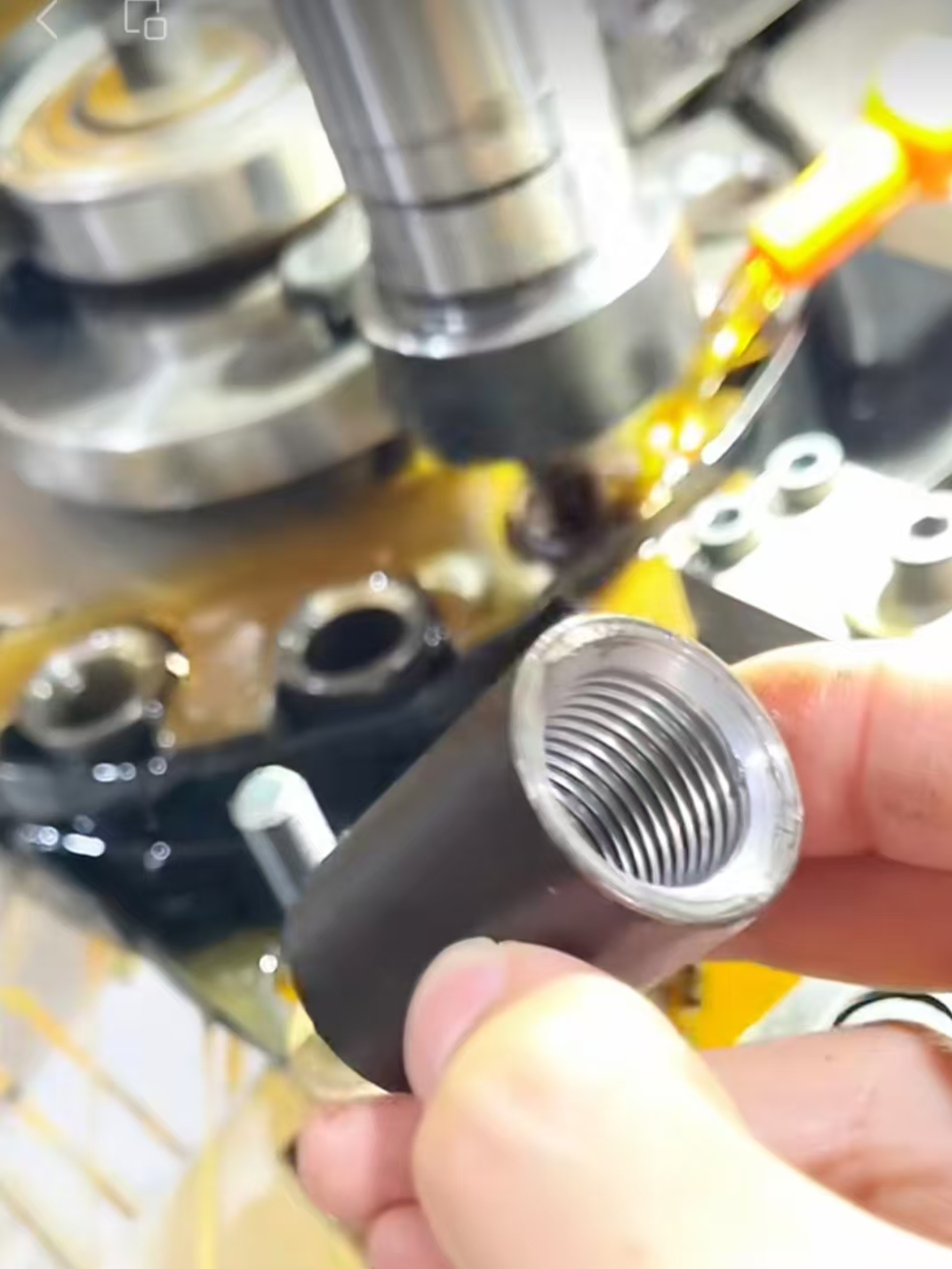

Automatic Vertical tapping Machine for large diameter threading
Automatic tapping Machine
Multi Functions Nut Automatic Vertical Drilling Advanced Hex Nuts And tubes Threading Tapping Machine
Vertical tapping Machine
Description
Machine details
| Main attack modules |
note |
|
PLC |
TAIWAN YONGHONG 32.PLC |
| Touch screen |
TAIWAN YONGHONG 7-inch touch screen |
| Feeding system | Stainless steel vibration plate |
| AC contactor | Schneider |
| Intermediate relay | Schneider |
| Tapping power |
Servo tapping machine, the spindle is equipped with Shanghai Newstar 3.8Kw servo motor, The feed axis is equipped with a new 0.75KW servo motor (POWER MODEL OPTIONS) |
| Indexing disk system | Pneumatic indexing |
| Non-standard fixture/clamb |
Customized |
|
Others |
Rack, program, circuit |
|
Machine weight |
Around 750KG (POWER MODEL OPTIONS) |
|
Size |
1250mmX1250mmX1800mm |
|
Voltage |
380V+Zero line (three-phase four-wire system) |
|
Main features of automatic tapping machine |
|
| Machine advantage |
1. PLC control, full Chinese color touch screen to realize man-machine dialogue, equipped with blind hole detection, tap detection, no material detection, counting energy tapping, torsion protection, which can tap left teeth, right teeth and drill holes. The parameter setting is convenient and quick, and the operation is fool-like. If there is a fault, it will automatically give an alarm and stop with a Chinese prompt. 2. This equipment is designed according to your company's products, with good stability, low investment, high efficiency, high precision of processed products, large quantity and short cost recovery period. 4. All actions are controlled by software, and the equipment parameters are set flexibly, which is convenient for function adjustment and technical upgrade and never lags behind. 5. This equipment is not easy to damage the tap. The faulty equipment will automatically give an alarm and stop, and prompt the error report in Chinese or English, so that there will be no rotten teeth and bad teeth, which will limit the generation of defective products, and the fault self-diagnosis function will make the fault display clear at a glance. 6. The transmission system is precise and concise, the work is more stable, the maintenance is more convenient, the failure rate is extremely low, and the equipment power consumption is low. 7. The fixture is convenient to change, and it can be used for many similar products to share this equipment. 8. The whole equipment is fully automated, and one person can operate multiple devices at the same time. |
|
Others |
1. Place of delivery: inspection by the supplier's factory. Shipped in wooden cases to the buyer's factory. 2. Delivery time: After the contract is signed and the advance payment is received, our company will arrange the R&D, production and commissioning for delivery in about 25 days. 3. Payment method: After the contract is signed, 40% of the total payment in advance is the advance payment. The factory will inspect the goods and pay off the remaining payment before delivery. 4. After-sales service: the wearing parts (pneumatic components, etc.) are guaranteed for 6 months, other parts are guaranteed for one year (except natural disasters and man-made damage), and they are maintained for life. |
Q&A
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 40% down payment, and60% before shipment(T/T mode), we also accept other
payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
Packing picture:
